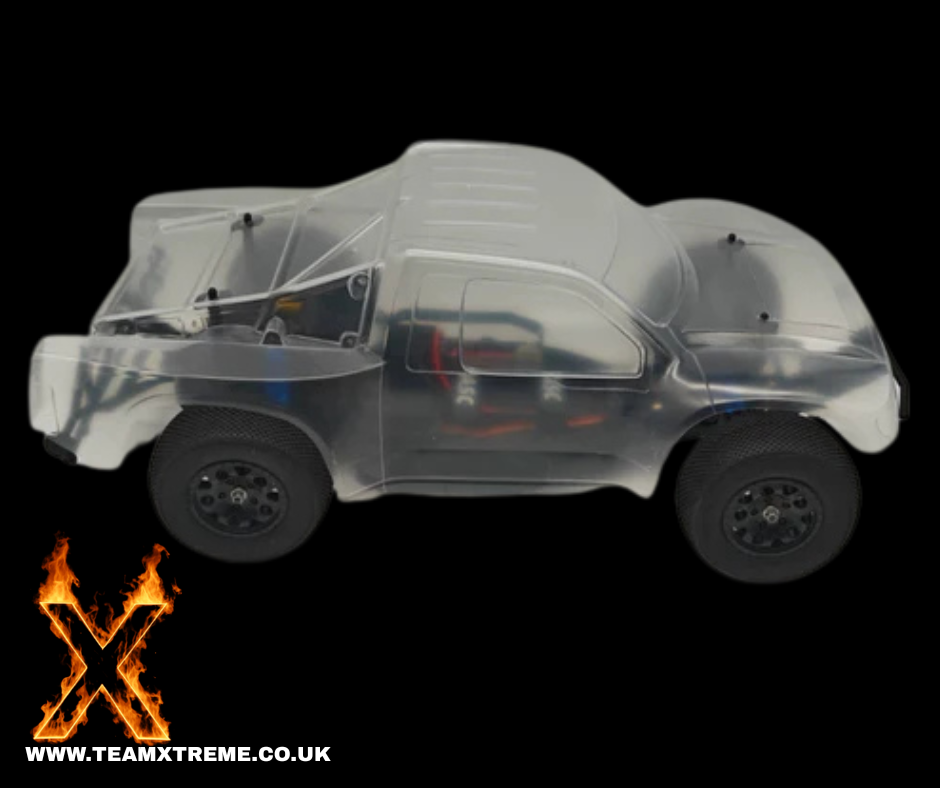

ASC10 Short Course Truck 2wd SC10

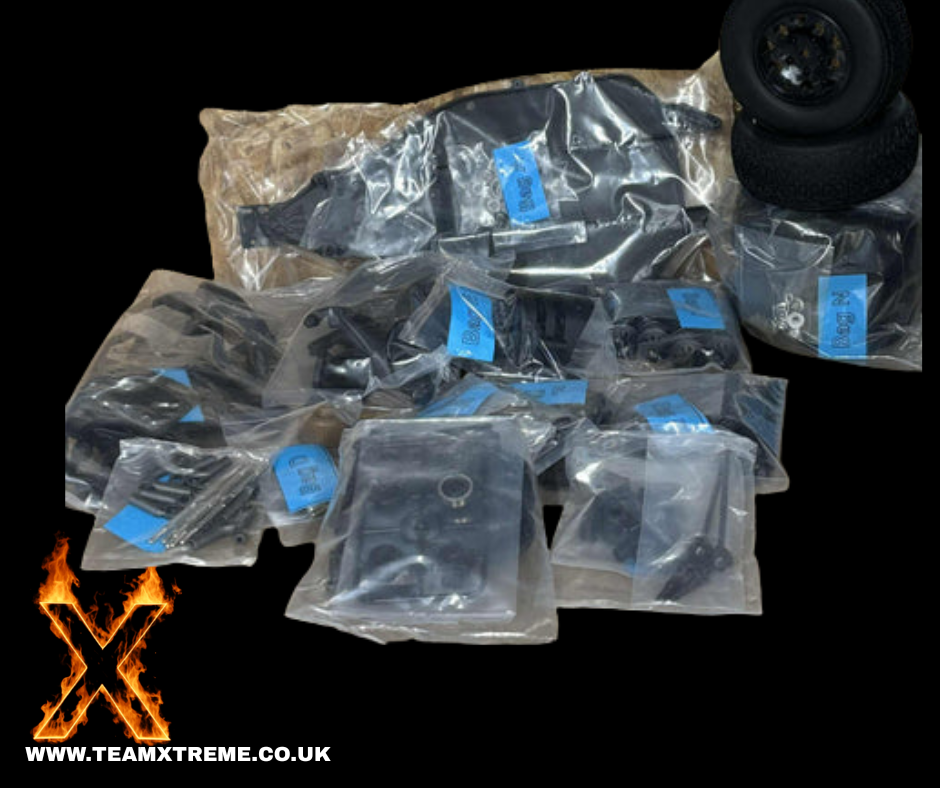

What’s in the kit (included)

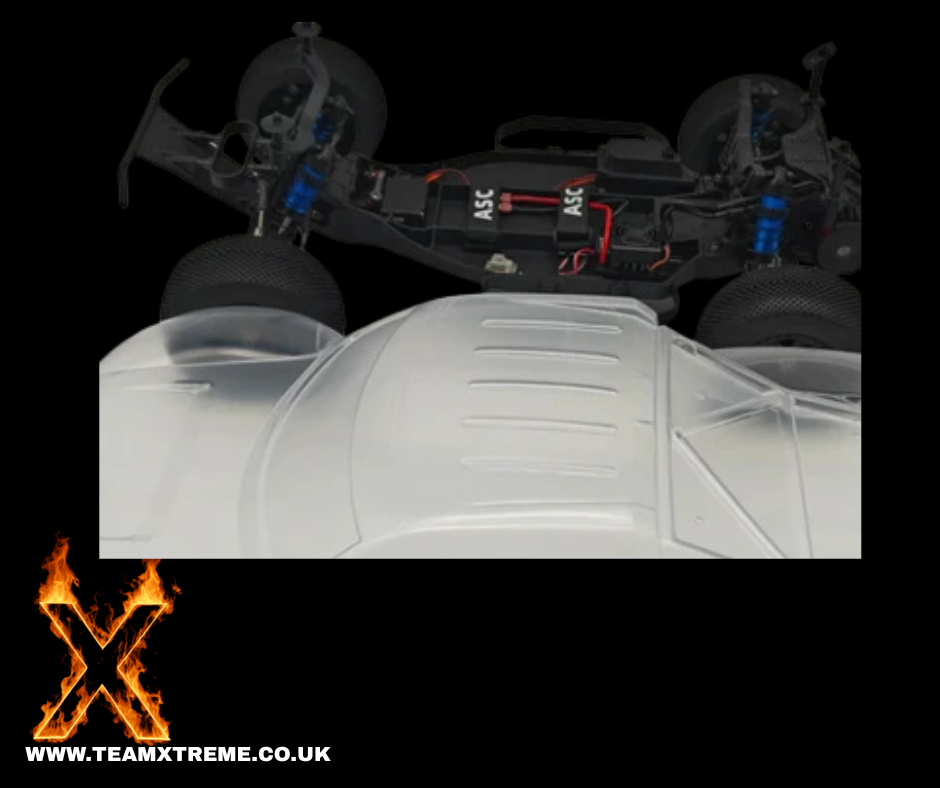

• Car chassis — composite frame, pre-assembled metal bevel gear differentials (need filling with oil)

• Shocks — hydraulic emulsion type with aluminum bodies (Ø15 mm, blue anodized), 3.5 mm rods, medium springs

• Drive system — sealed bearings, CVD rear driveshafts, metal pinion gears, rear axles with aluminum inserts, slipper clutch

• Transmission parts —

  • Motor pinion: 18T, 48DP (for 3.175 mm motor shaft)

  • Spur gears: 84T and 87T, 48DP

• Wheels/tires — black short course truck rims with tires + foam inserts (need gluing)

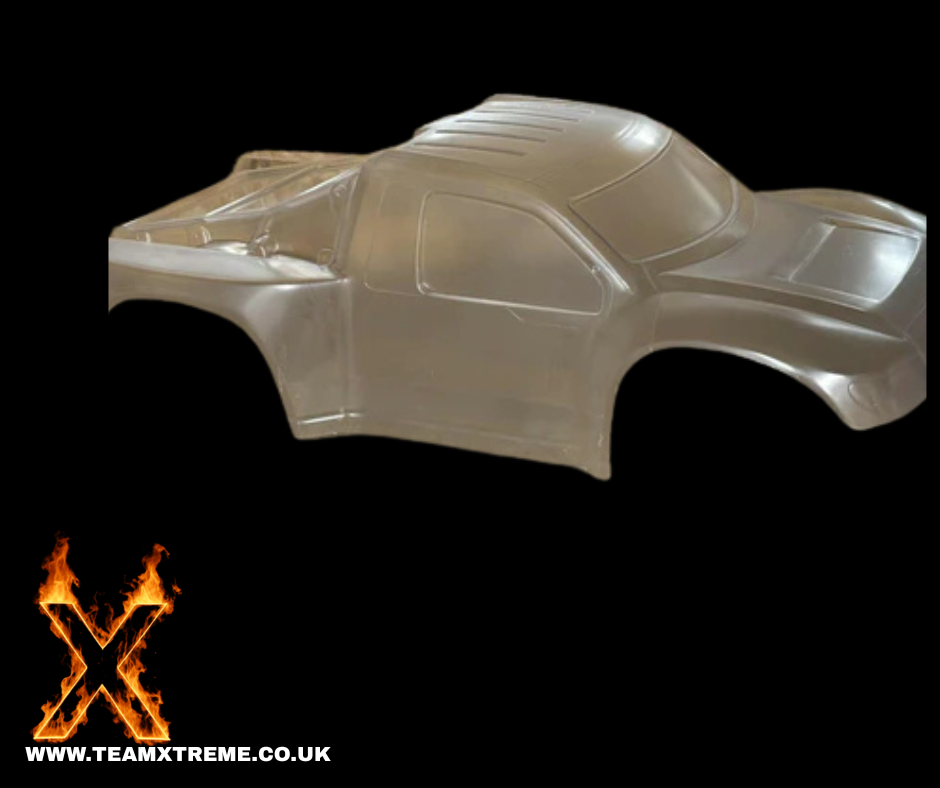

• Bodywork — clear body shell (needs painting), stickers

• Other — waterproof radio box, 2S/3S LiPo-compatible battery tray

• Dimensions — L: 479 mm / W: 293 mm / WB: 324 mm / Weight: 1.8 kg

What’s not included (you must supply)

• Radio system — transmitter + receiver

• Steering servo — standard size

• Motor — 36-size brushed or brushless

• ESC (speed controller) — compatible with your chosen motor & battery

• Batteries —

  • Radio batteries (usually AA for transmitter)

  • 2S or 3S LiPo pack for the buggy

• Charger — for LiPo battery

• Consumables/tools — tire glue, polycarbonate paint for body shell

Assembly notes

• This is a kit, so you’ll be assembling it from parts (the differentials and shocks are pre-assembled but dry; you’ll need to add oil).

• Tires come loose — glue them to the rims before running.

• Body shell is clear — paint from the inside before applying stickers.

• Make sure your motor pinion matches the included 48DP spur gears.
