RC10'91 Detroit Worlds REPLICA
Replica:
Now YOU can re-create your very own replica of this ICONIC 1991 Detroit Worlds winning RC10 prototype! Or do your own cool version!
This page provides you all the details about this conversion kit with listings and links relating to what you get in this GP3D conversion kit and also what are all the remaining original and after market parts you will need or suggested options to build your complete car!
WHAT DO YOU GET IN THE GP3D '91 CONVERSION KIT?
- Chassis (Carbon)
- Top deck (Carbon)
- Gearbox Top Brace Plate (Carbon)
- Shock Tower - Front (FRP natural green)
- Shock Tower - Rear (FRP natural green)
- Bulkhead - Rear (Printed: PCBlend natural)
- Bulkhead - Front Nose (Printed: PCBlend natural)
- Inner Suspension Mounts - Rear (Printed: PCBlend natural)
- Suspension Arms - Rear (Printed: PCBlend natural)
- Suspension Arms - Front (Printed: PCBlend natural)
- Uprights - Front (Printed: PCBlend natural)
- Uprights - Rear (Printed: PCBlend natural) - OG replicas, or you can use originals (e.g.6365)
- Steering blocks - Front (Printed: PCBlend natural)
- Steering Bell-crank Servo-saver assembly (includes bolts/post/spring/nuts)
- Body Post Rear (replica of OG RC10 item) (Printed: PCBlend natural)
- Body Post Front (Printed: PCBlend natural)
- Nylon Nuts 4-40 x6 (Printed: PCBlend natural)
- Battery Cups x2 - 'trimmed' (Printed: PCBlend natural)
- Battery Retainer Straps x2 (Printed: PCBlend natural)
- Bumper (Printed: TPU black)

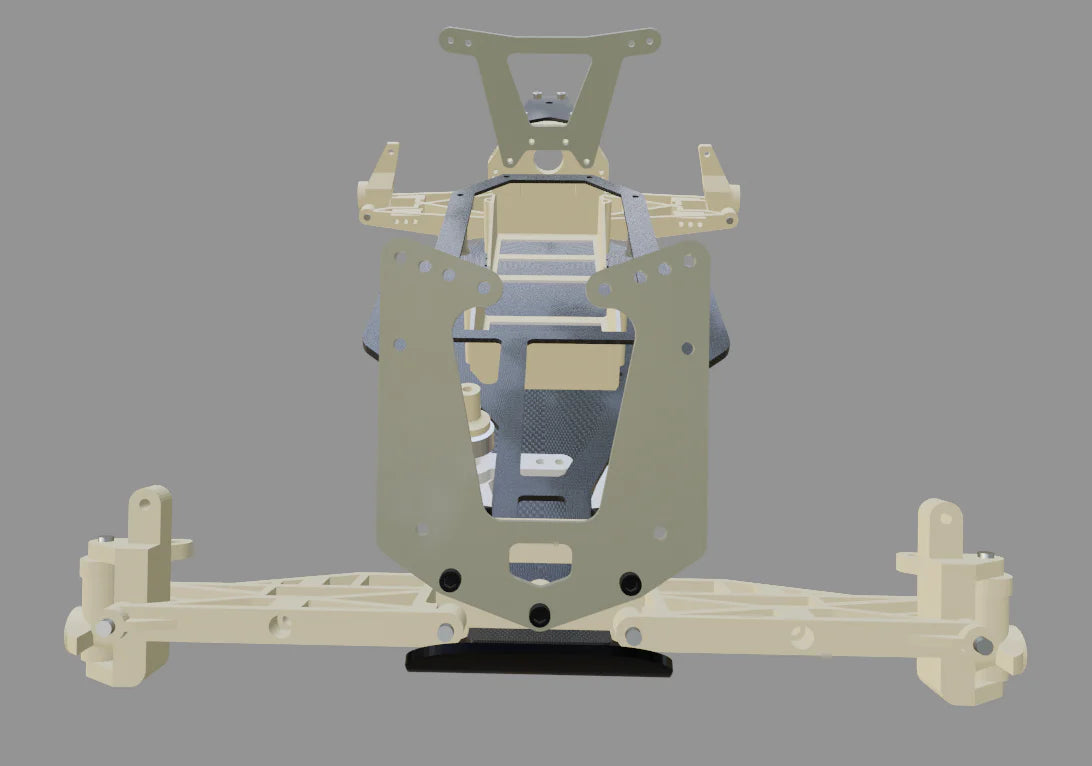

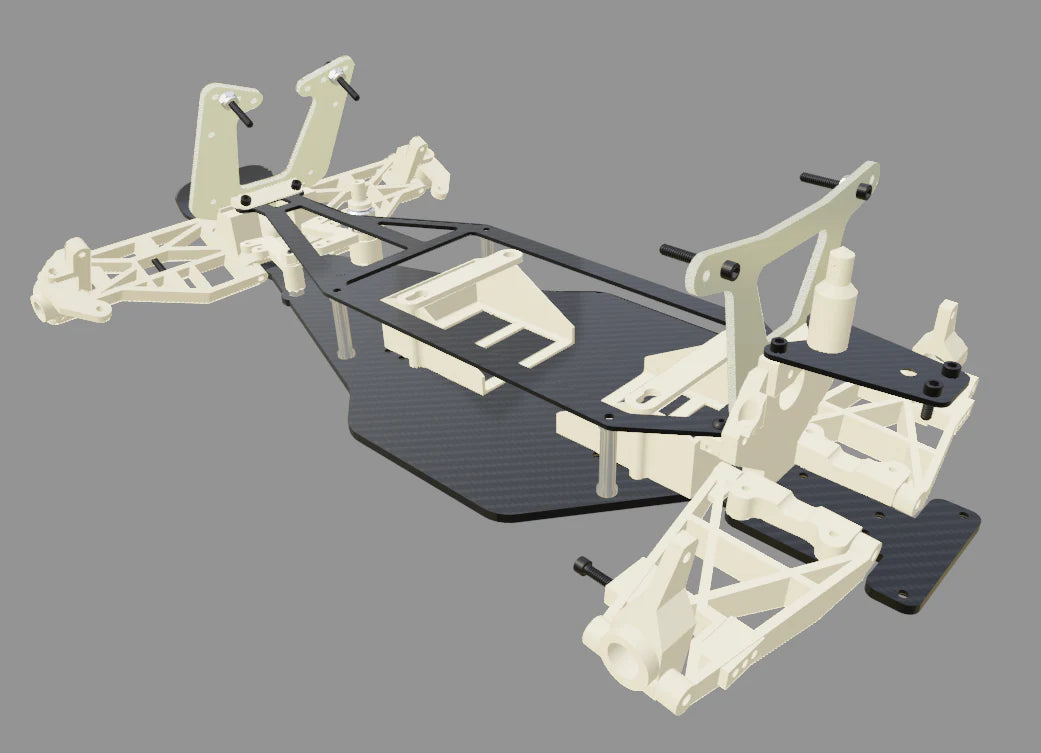

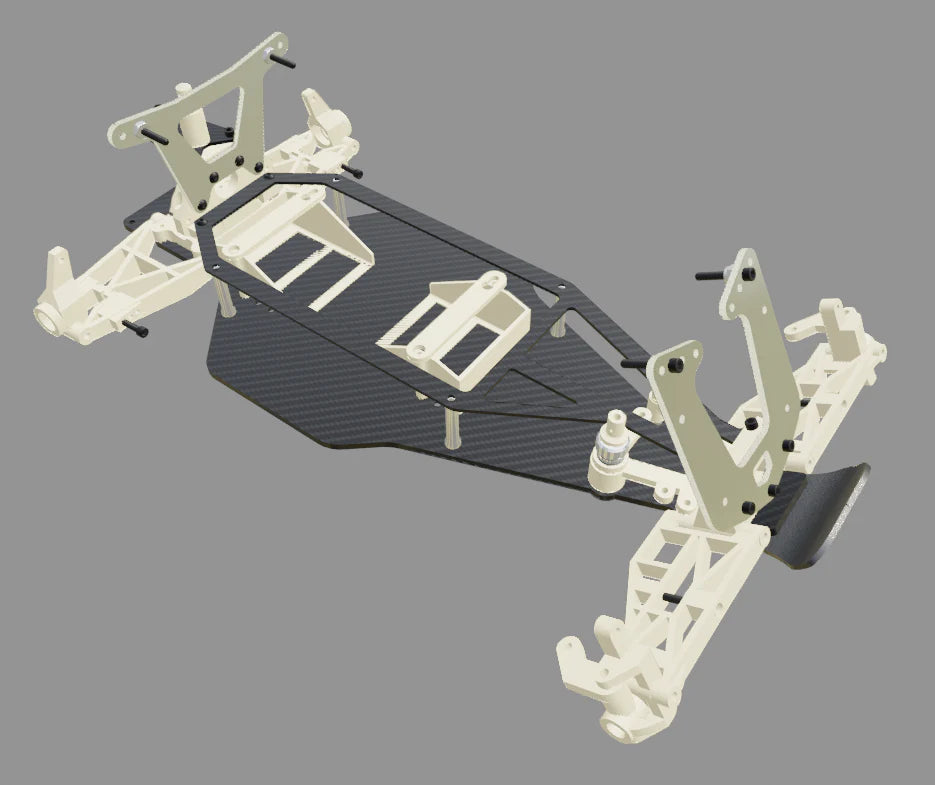

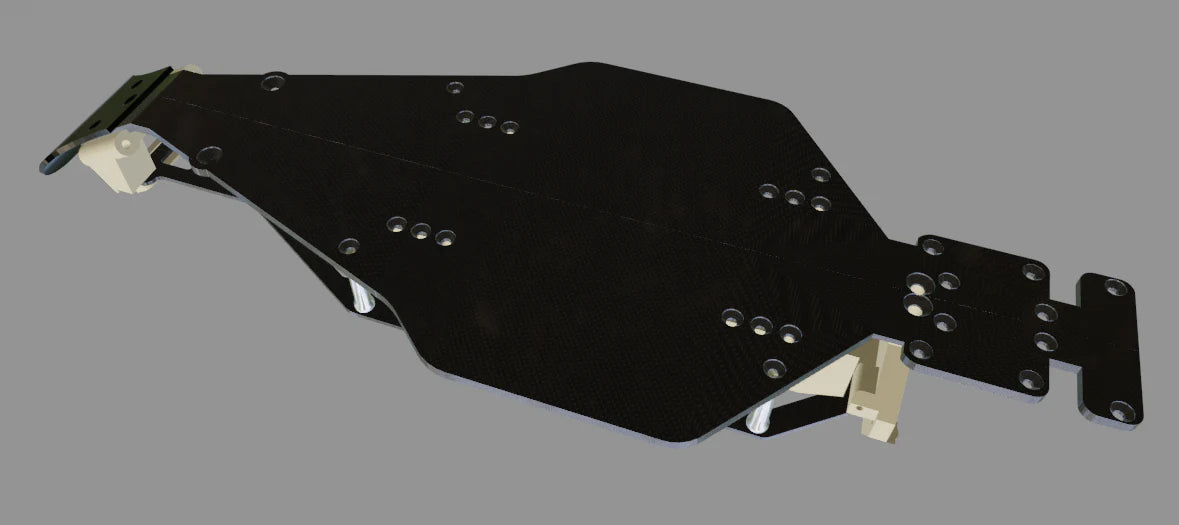

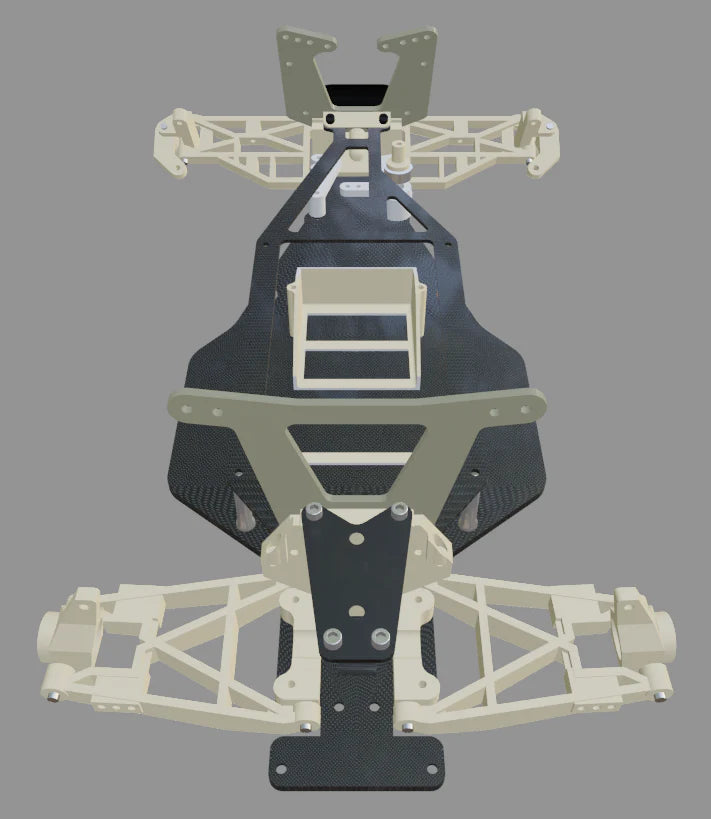

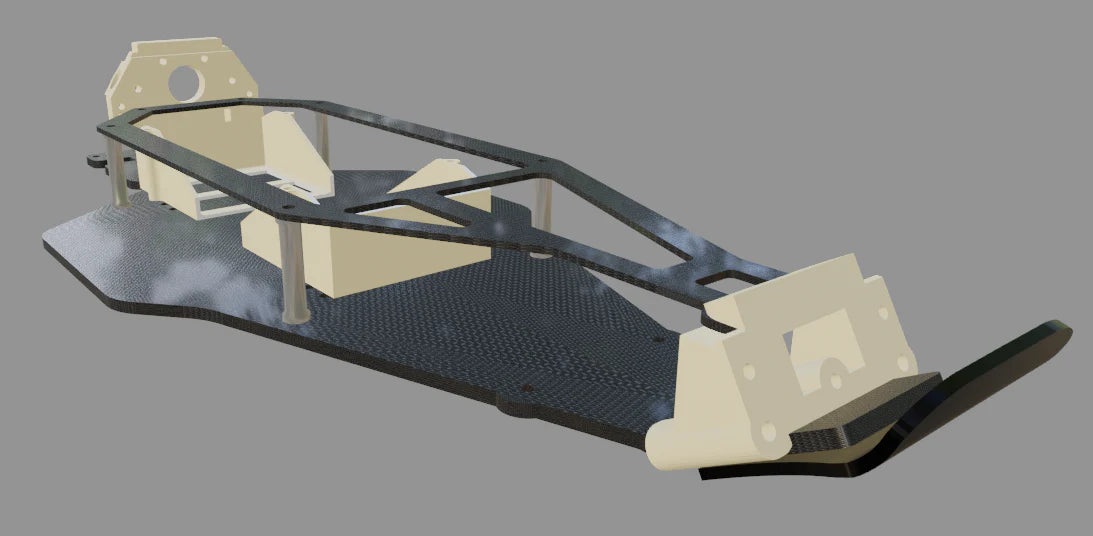

This render depicts the parts that you get in the kit:
WHAT ELSE DO YOU NEED!?
- Shocks Front (1.02")
- Note: these truck items are longer than the original RC10 car shock bodies/shafts
- Reference measurements from pivot bolts centre-to-centre:
- Extension max: 88mm
- Compression min: 63mm
- Shocks Rear (1.32")
- Note: these are the same as the original RC10 car shock bodies
- Reference measurements from pivot bolts centre-to-centre:
- Extension (with internal limiters): ~91mm
- Compression min: 69mm
- RC10/RC10T Stealth gearbox
- Casing/gears/bearings/layshaft/diff and hardware
- Gear cover
- Alternate: Gearbox Casing available for using B2/B6.x gears/internals
- CVDs
- CVDs (as per the '89 will also fit the same)
- True scale is: dog bones/stub axles!
- Front Axles
- Can use the original RC10 axles with the hex shape into the block
- Can use NoCoast axles with round shape into the block
- Turnbuckles
- Hinge pins
- Measurements (between inside of e-clip slots):
- Front Outer: 26mm
- Front Inner: 39~40mm
- King Pin: 29mm
- Rear Outer: 29mm
- Rear Inner: 51mm
- Ball cups and ball studs
- FB: Cheng Fan
- Bearings; for gearbox, rear uprights and front wheels
- General 4-40 & 8-32 hardware
